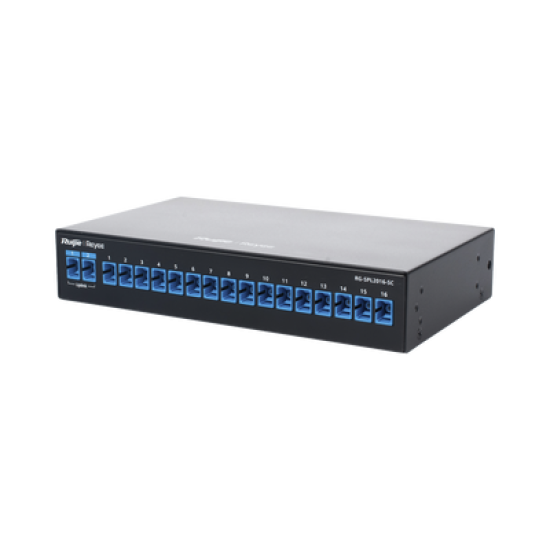

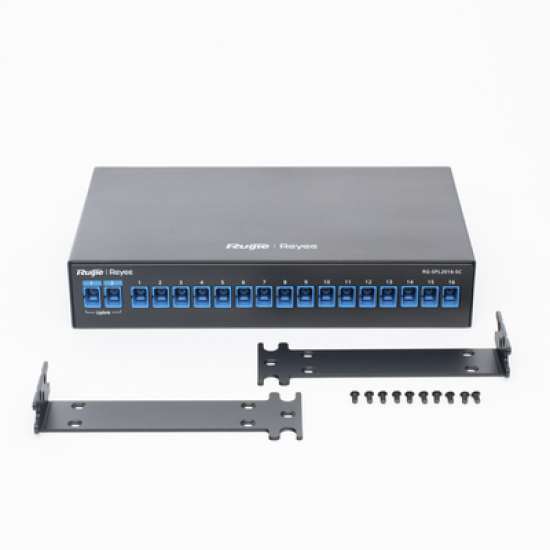

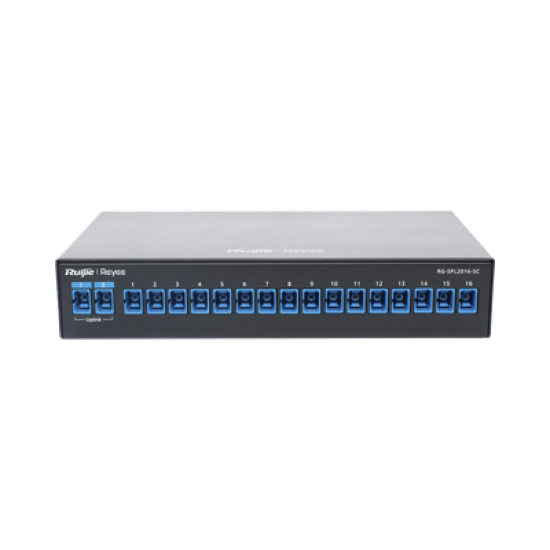

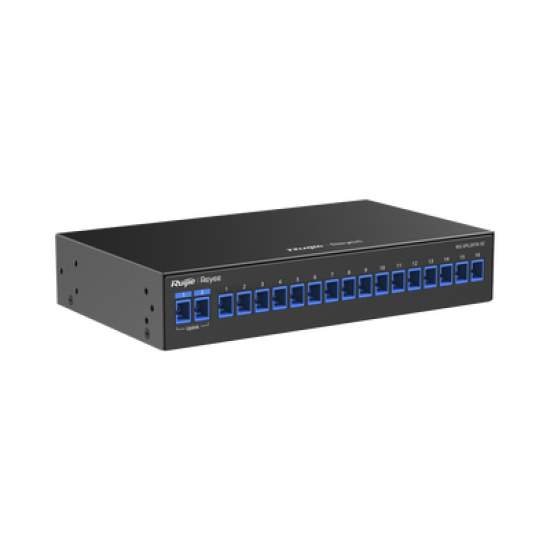

e-Lighten Splitter Pasivo 2/16, Puertos PON SC, Frecuencias soportadas de 1260nm a 1650nm con hasta 500 mW de Potencia de Entrada
$1,393.76
De la misma categoría
$351.80
Sin Iva:$351.80
$209.78
Sin Iva:$209.78
$93.62
Sin Iva:$93.62
$13,371.97
Sin Iva:$13,371.97
Fuente Redundante Vcc / Presupuesto de 150W / Funciona para OLT DeltaStream DS-P7001-08, DS-P7001-16
$2,294.00
Sin Iva:$2,294.00
$15,607.86
Sin Iva:$15,607.86
De la misma marca
$3,075.58
Sin Iva:$3,075.58
$3,314.28
Sin Iva:$3,314.28
$67.35
Sin Iva:$67.35
$45.62
Sin Iva:$45.62
$53,951.12
Sin Iva:$53,951.12
$1,932.47
Sin Iva:$1,932.47
$7,705.81
Sin Iva:$7,705.81
$4,662.78
Sin Iva:$4,662.78
$2,873.21
Sin Iva:$2,873.21
$19,548.53
Sin Iva:$19,548.53
$4,952.39
Sin Iva:$4,952.39
$10,242.90
Sin Iva:$10,242.90
$3,044.69
Sin Iva:$3,044.69
Key Specification
Model
RG-SPL2016-SC
Operating Wavelength
1260 nm to 1650nm
Weight
0.88kg (2.16 lbs.)
Operating Temperature
–40°C to +85°C
(–40°F to +185°F)
(–40°F to +185°F)
Dimensions (W x D x H)
220 mm x 130 mm x 42 mm
(8.66 in. x 5.12 in. x 1.65 in.)
(8.66 in. x 5.12 in. x 1.65 in.)
Temperature-Dependent Loss (dB)
≤ 0.3
Wavelength-Dependent Loss (dB)
0.4 (1310 + 40)
0.4 (1550 + 40)
0.4 (1550 + 40)
Insertion Loss (dB)
≤ 17.7
Port Insertion Loss Uniformity (dB)
≤ 1.5
Return Loss (dB)
≥ 50
Polarization-Dependent Loss (dB)
≤ 0.3
Maximum Input Power (mW)
500
Warranty
3 years
