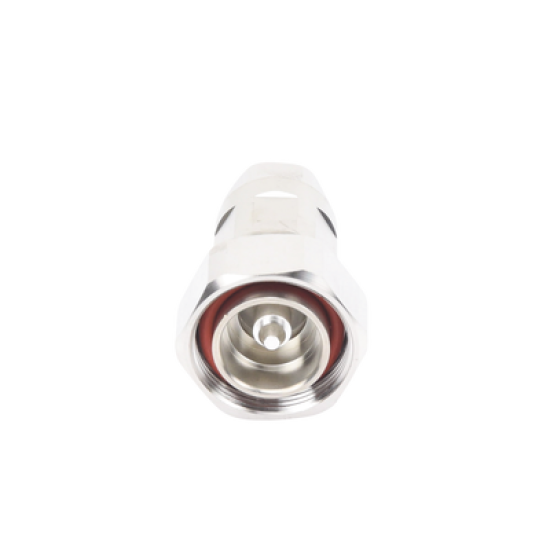

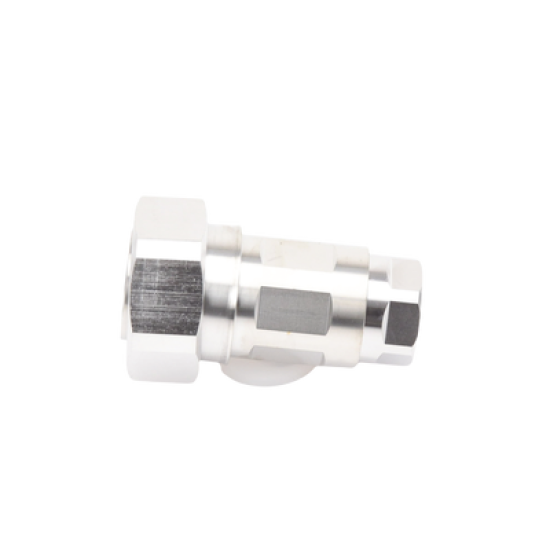

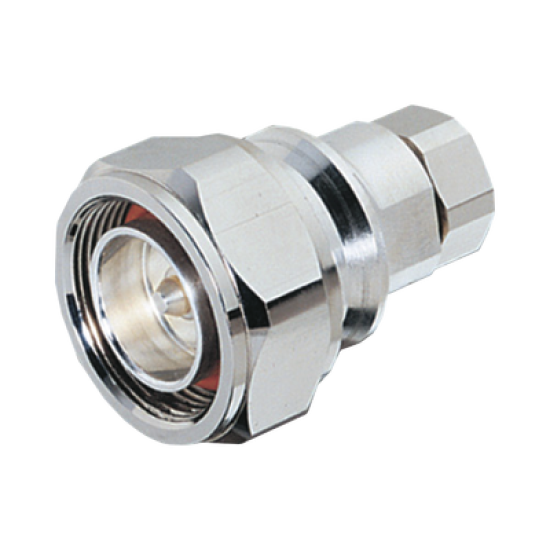

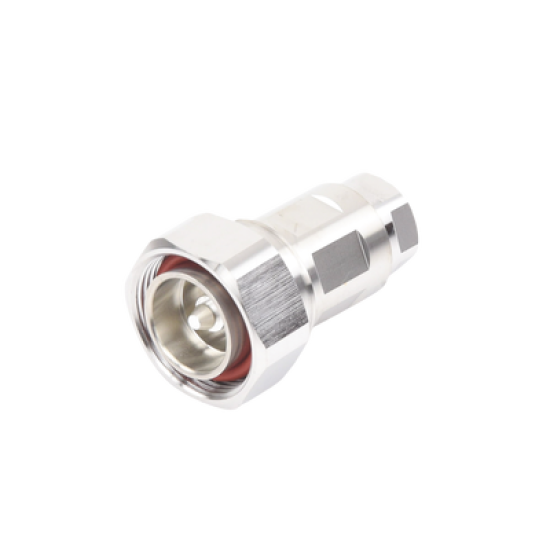

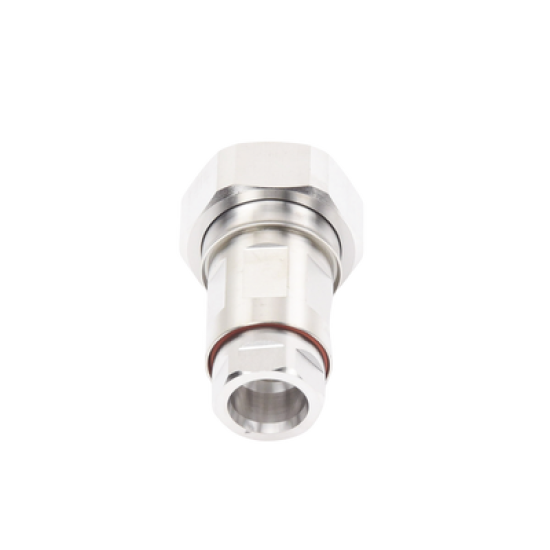

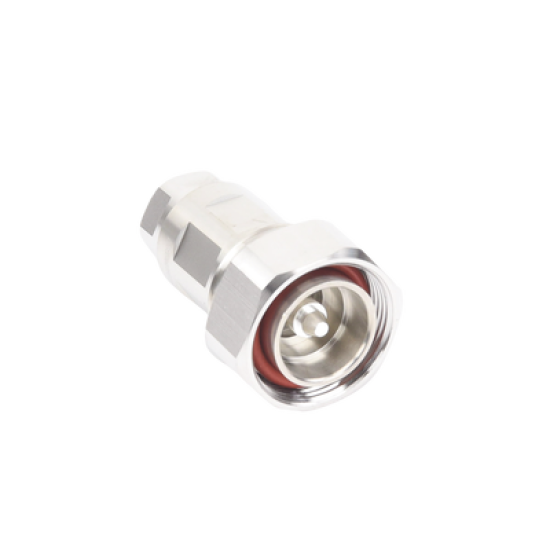

Conector DIN 7/16 Macho Para Cable FSJ4-50B
Conector DIN 7/16 Macho Para Cable FSJ4-50B
Stock: Inmediato
(más info.)
- Disponibilidad: En Stock
- Marca ANDREW / COMMSCOPE
- Modelo F4PDMV2-C
$733.27
De la misma categoría
$263.41
Sin Iva:$263.41
$27.19
Sin Iva:$27.19
$34,078.73
Sin Iva:$34,078.73
$124.75
Sin Iva:$124.75
$78.14
Sin Iva:$78.14
$10,345.36
Sin Iva:$10,345.36
$130.08
Sin Iva:$130.08
$112.57
Sin Iva:$112.57
$408.83
Sin Iva:$408.83
$5,613.34
Sin Iva:$5,613.34
$115.96
Sin Iva:$115.96
$7,741.76
Sin Iva:$7,741.76
$980.46
Sin Iva:$980.46
$1,938.29
Sin Iva:$1,938.29
$28.81
Sin Iva:$28.81
$249.43
Sin Iva:$249.43
$123.27
Sin Iva:$123.27
$207.65
Sin Iva:$207.65
$3,535.89
Sin Iva:$3,535.89
$2,928.68
Sin Iva:$2,928.68
De la misma marca
$2,928.68
Sin Iva:$2,928.68
Adaptador para sujetadores tipo mariposa. Instalación en ángulo de hasta 0.63". Paquete de 10 piezas
$1,940.01
Sin Iva:$1,940.01
$3,301.26
Sin Iva:$3,301.26
$201.15
Sin Iva:$201.15
$308.52
Sin Iva:$308.52
$847.54
Sin Iva:$847.54
$820.68
Sin Iva:$820.68
$793.69
Sin Iva:$793.69
$10,693.78
Sin Iva:$10,693.78
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 7500 MHz |
| Average Power at Frequency | 1.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 884.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical  | 0.05 dB |
| Shielding Effectiveness | -110 dB |
